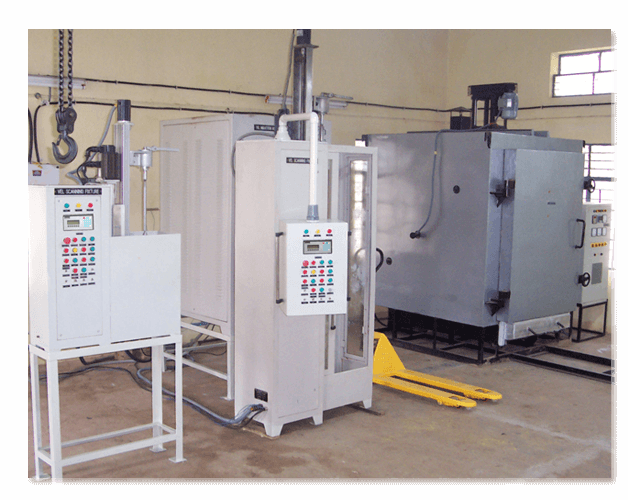

Manufacturing and Testing Facility

M/s Vel Hi-Tech Industries have a full fledged Induction Heat Treatment shop with Induction Coil Development Unit and Quality Control unit.

a. MANUFACTURING FACILITY

Induction Heaters (8nos):

We could offer Induction Heat Treatment Services with our latest state-of-art, indigenously built MF/HF/RF Induction Heating Equipments of power capacity upto 100 kW at most competitive rates and unparalleled quality.

All our Induction Heaters and Fixtures are modular type that can be easily interchanged as per the job requirements

Induction Hardening Fixtures:

  • Vertical Scanner with PLC Control, driven by Servomotors to progressively harden shafts of length upto 1250mm and diameter  100mm (job moving) and  also diameter upto 400mm (inductor moving)
  • Vertical Scanner with PLC Control, driven by driven by Servomotors to progressively harden shafts of  length upto 300mm and diameter upto 80mm
  • Horizontal rotary Scanner for large sprockets, gears, rings, etc
  • Vertical rotary scanner for rings, wheels, etc
  • Single Shot Fixture with/ without job rotation and up/dn pneumatically operated system
  • Fully/Semi automatic fixture for hardening small components

Tempering Furnace:

  • Size 1500x1500x1000mm with PLC for precision tempering

b.TESTING FACILITY

  • Rockwell Hardness Tester, Superficial Rockwell Hardness Tester, Micro Vickers Hardness Tester, Digital Portable Hardness Tester, Poldy Hardness Tester, Shear Pin Hardness Tester, Magnetic Particle Inspection system, Etc

c. OTHERS

Toolroom

  • Cut off machine, Moulding machine, Emery Belt Polisher, Polishing machine, Lathe, Drilling machine, Grinding machine, Welding machine, Brazing set, Cutting set, etc.

Water Treatment

  • Machine power component cooling system and Quenchant (Water, Aquaquench, Oil, etc) Re-Circulation Systems Complete with Cooling-Towers, Heat-Exchangers, Tanks, Pumps, Etc for Trouble Free Running Of Induction Hardening Process
